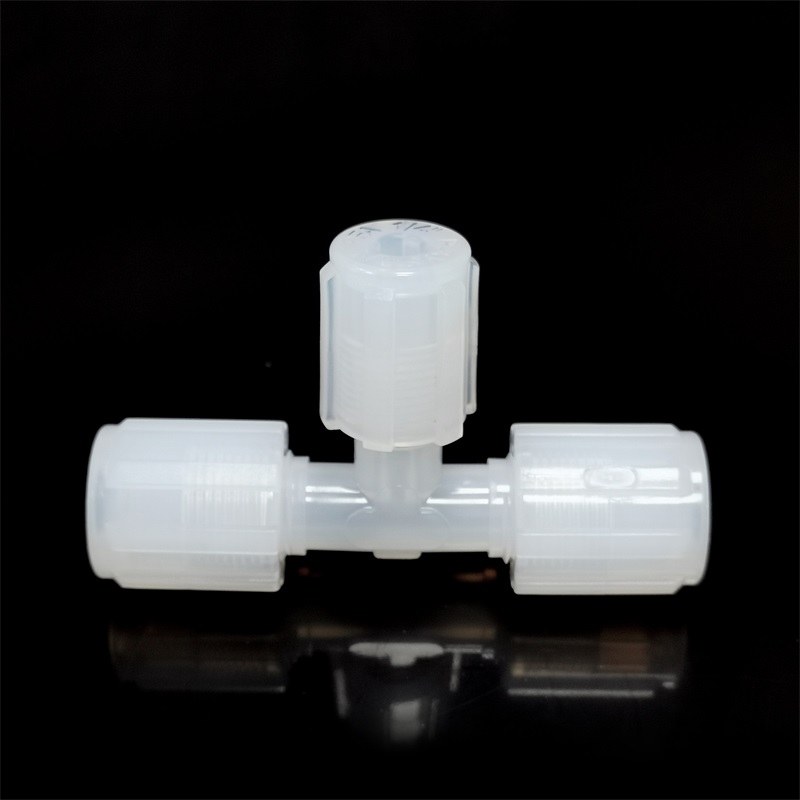

Caractéristiques: il est spécialement utilisé dans l'industrie des semi-conducteurs à haute pure...
Caractéristiques: il est spécialement utilisé dans l'industrie des semi-conducteurs à haute pure...

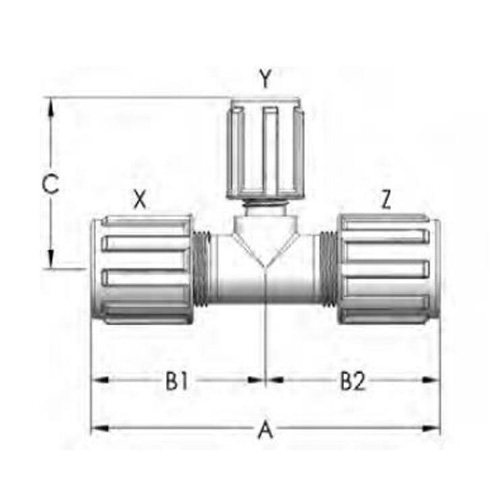

| Numéro de la partie | Tube OD X*Y*Z | Orifice | A | B1 | B2 | C |
| (pouce) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| UTRA0604041 | 3/8"*1/4"*1/4" | 3.81mm | 86.87mm | 44.70mm | 42.16mm | 42.16mm |
| UTRA0604061 | 3/8"*1/4"*3/8" | 3.81mm | 89.41mm | 44.70mm | 44.70mm | 42.16mm |
| UTRA0606041 | 3/8"*3/8"*1/4" | 3.81mm | 86.87mm | 44.70mm | 42.16mm | 44.70mm |
| UTRA0804041 | 1/2"*1/4"*1/4" | 3.81mm | 89.66mm | 47,50 mm | 42.16mm | 42.16mm |
| UTRA0804061 | 1/2"*1/4"*3/8" | 3.81mm | 92.20mm | 47,50 mm | 44.70mm | 42.16mm |
| UTRA0804081 | 1/2"*1/4"*1/2" | 3.81mm | 95,00 mm | 47,50 mm | 47,50 mm | 42.16mm |
| UTRA0806061 | 1/2"*3/8"*3/8" | 6.35mm | 92.20mm | 47,50 mm | 44.70mm | 44.70mm |
| UTRA0806081 | 1/2"*3/8"*1/2" | 6.35mm | 95,00 mm | 47,50 mm | 47,50 mm | 44.70mm |
| UTRA0808041 | 1/2"*1/2"*1/4" | 3.81mm | 89.66mm | 47,50 mm | 42.16mm | 47,50 mm |
| UTRA0808061 | 1/2"*1/2"*3/8" | 9.65mm | 92.20mm | 47,50 mm | 44.70mm | 47,50 mm |
| UTRA1204121 | 3/4"*1/4"*3/4" | 3.81mm | 112.78mm | 56,39 mm | 56,39 mm | 42.16mm |
| UTRA1206121 | 3/4"*3/8"*3/4" | 6.35mm | 112.78mm | 56,39 mm | 56,39 mm | 44.70mm |
| UTRA1208081 | 3/4"*1/2"*1/2" | 9.65mm | 103.89mm | 56,39 mm | 47,50 mm | 47,50 mm |
| UTRA1208121 | 3/4"*1/2"*3/4” | 9.65mm | 112.78mm | 56,39 mm | 56,39 mm | 47,50 mm |
| UTRA1212061 | 3/4"*3/4"*3/8" | 6.35mm | 101.09mm | 56,39 mm | 44.70mm | 56,39 mm |
| UTRA1212081 | 3/4"*3/4"*1/2" | 9.65mm | 103.89mm | 56,39 mm | 47,50 mm | 56,39 mm |
| UTRA1604161 | 1"*1/4"*1" | 3.81mm | 137.16mm | 68.58mm | 68.58mm | 51.31mm |
| UTRA1606161 | 1"*3/8"*1" | 6.35mm | 137.16mm | 68.58mm | 68.58mm | 54.40mm |
| UTRA1608161 | 1"*1/2"*1" | 9.65mm | 137.16mm | 68.58mm | 68.58mm | 57,40 mm |
| UTRA1612161 | 1"*3/4"*1" | 16 heures mm | 137.16mm | 68.58mm | 68.58mm | 56,39 mm |
| UTRA16121221 | 1"*3/4"*3/4" | 16 heures mm | 124.97mm | 68.58mm | 56,39 mm | 56,39 mm |
| UTRA1616081 | 1"*1"*1/2" | 9.65mm | 124.97mm | 68.58mm | 56,39 mm | 68.58mm |
| UTRA16161221 | 1"*1"*3/4” | 16 heures mm | 124.97mm | 68.58mm | 56,39 mm | 68.58mm |
