Noix de feu PVDF - UNB Fabriqué à partir de matières premières pures PVDF et produit dans un ate...

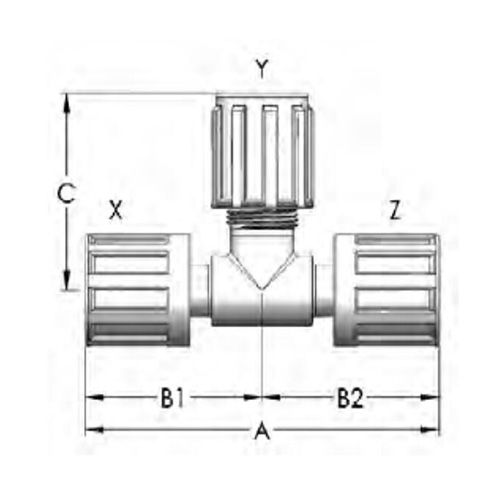

| Numéro de la partie | X (économie d ' espace) | Y | Z (économie d ' espace) | Orifice | A | B1 | B2 | C |
| (pouce) | (pouce) | (pouce) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RTS2A04S0404S1 | 1/4" | 1/4" | 1/4" | 3.81mm | 83.31mm | 41.66mm | 41.66mm | 42.16mm |
| RTS2A06S0406S1 | 3/8" | 1/4" | 3/8" | 3.81mm | 87.88mm | 43.94mm | 43.94mm | 42.16mm |
| Autres | 3/8" | 3/8" | 3/8" | 6.35mm | 87.88mm | 43.94mm | 43.94mm | 44.70mm |
| Annexe | 3/8" | 1/2" | 3/8" | 6.35mm | 87.88mm | 43.94mm | 43.94mm | 47,50 mm |
| RTS2A08S0408S1 | 1/2" | 1/4" | 1/2" | 3.81mm | 93.47mm | 46,74 mm | 46,74 mm | 42.16mm |
| RTS2A08S0808S1 | 1/2" | 1/2" | 1/2" | 9.65mm | 93.47mm | 46,74 mm | 46,74 mm | 47,50 mm |
| RTS2A08S1208S1 | 1/2" | 3/4" | 1/2" | 9.65mm | 93.47mm | 46,74 mm | 46,74 mm | 56,39 mm |
| RTS2A12S0412S1 | 3/4" | 1/4" | 3/4" | 3.81mm | 108.20mm | 54.10mm | 54.10mm | 42.16mm |
| RTS2A12S0612S1 | 3/4" | 3/8" | 3/4" | 6.35mm | 108.20mm | 54.10mm | 54.10mm | 44.70mm |
| Autres | 3/4" | 1/2" | 3/4" | 9.65mm | 108.20mm | 54.10mm | 54.10mm | 47,50 mm |
| RTS2A12S1212S1 | 3/4" | 3/4" | 3/4" | 16 heures mm | 108.20mm | 54.10mm | 54.10mm | 68.58mm |
| RTS2A16S0616S1 | 1" | 3/8" | 1" | 6.35mm | 139.19mm | 69.60mm | 69.60mm | 54.10mm |
| RTS2A16S0816S1 | 1" | 1/2" | 1" | 9.65mm | 139.19mm | 69.60mm | 69.60mm | 57,40 mm |
| RTS2A16S1216S1 | 1" | 3/4" | 1" | 16 heures mm | 139.19mm | 69.60mm | 69.60mm | 56.13mm |
| Autres | 1" | 1" | 1" | 22,35 mm | 139.19mm | 69.60mm | 69.60mm | 68.58mm |
